Welcome to JUCAI Industrial (Shenzhen) Co., Ltd. official website!
Marketing service hotline
13510339237
Freeze dryer
Current location: Home > Dryer and filter > Freeze dryer

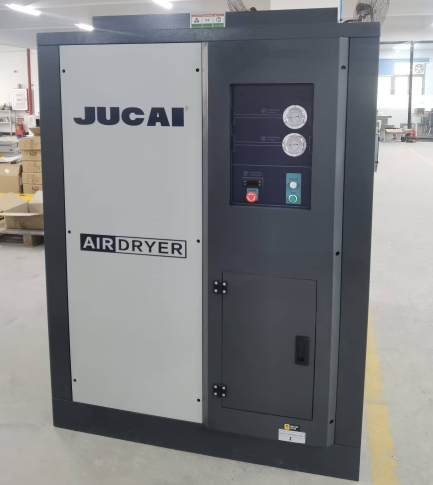

Product name:DS1000V JS-750


Refrigerated dryer shell series


Brand: JUCAI

Model: Shell series

Order Hotline: 13510339237 Call me

Jucai DS-VH refrigerated dryer reduces water content in compressed air by forced cooling
Content to protect the user's compressed air system.
Precooler, evaporator and separator integrated design, high efficiency heat transfer
Plate-fin heat exchangers ensure that DS-VH dryers provide industrial-grade drying solutions
Case: The refrigeration system uses low-energy refrigeration compressors, air-cooled condensers, and environmentally friendly refrigeration
Agent, the whole machine energy saving and environmental protection. With a new intelligent controller: Dew collection
Point display and fault alarm function in one.







No. Items Main parameters
1 Amount of air handled 100m3/min
2 Compressed air intake pressure 0.7 ~ 1.3 Mpa
3 Air inlet temperature ≦ 60 ° C
4 Standard ambient temperature 1 ~ 38 ℃
5 Compound integrated heat exchanger Material 6063 O
6 Pressure dew point 2-10 ℃
7 Adapt to work schedule Continuous work
8 Pressure loss ≦ 0.018Mpa
9 Drain valve Electronic automatic drain valve + automatic float valve
10 Cooling method Air cooling
11 Power Supply V/PH/Hz 380~415VAC 3P 50Hz
12 Control mode Controller/mechanical pressure control 7 "color touch
13 Compressor power 18.5 Kw / 50 hz
14 Power of the whole machine 21.5 Kw / 50 hz
15 Refrigerant R410A
16 Nozzle method Flange
17 Inlet and outlet nozzle size DN150
18 External dimensions 2280mm long x 1600mm wide x 1900mm high
19 Weight ? Kg
20 Mounting method No foundation installation (base with reserved fixing holes)
21 Other features RS485
Note: This form is used for product sales promotion. The company reserves the right to continuously improve the technology. If there is any change, we will not inform you in advance!
